NCV210R - Current-Shunt Monitors

Product Overview

ON Semiconductor

📥 Download Datasheet

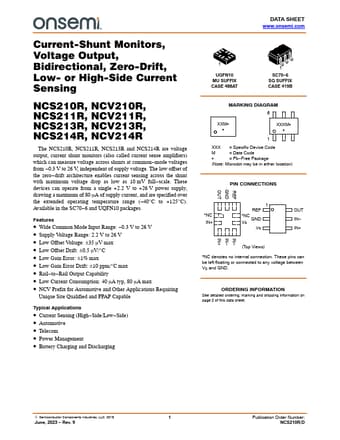

NCV210R Current-Shunt Monitors by ON Semiconductor - Datasheet Preview — Datasheet preview – NCV210R

Datasheet Details

Part number	NCV210R
Manufacturer	ON Semiconductor
File Size	735.02 KB
Description	Current-Shunt Monitors
Datasheet	NCV210R Datasheet
Additional preview pages of the NCV210R datasheet.

Product details

Features

Wide Common Mode Input Range:.
0.3 V to 26 V.
Supply Voltage Range: 2.2 V to 26 V.
Low Offset Voltage: ±35 mV max.
Low Offset Drift: ±0.5 mV/°C.
Low Gain Error: ±1% max.
Low Gain Error Drift: ±10 ppm/°C max.
Rail.
to.
Rail Output Capability.
Low Current Consumption: 40 mA typ, 80 mA max.
NCV Prefix for Automotive and Other.
