NCV214R, NCV210R Datasheet - ON Semiconductor

NCV214R - Current-Shunt Monitors

Current-Shunt Monitors, Voltage Output, Bidirectional, Zero-Drift, Low- or High-Side Current Sensing NCS210R, NCV210R, NCS211R, NCV211R, NCS213R, NCV213R, NCS214R, NCV214R The NCS210R, NCS211R, NCS213R and NCS214R are voltage output, current shunt monitors (also called current sense amplifiers) which can measure voltage across shunts at common mode voltages from 0.3 V to 26 V, independent of supply voltage.

The low offset of the zero drift architecture enables current se

NCV214R Features

* Wide Common Mode Input Range:

* 0.3 V to 26 V

* Supply Voltage Range: 2.2 V to 26 V

* Low Offset Voltage: ±35 mV max

* Low Offset Drift: ±0.5 mV/°C

* Low Gain Error: ±1% max

* Low Gain Error Drift: ±10 ppm/°C max

* Rail

* to

NCV210R-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: NCV214R, NCV210R. Please refer to the document for exact specifications by model.

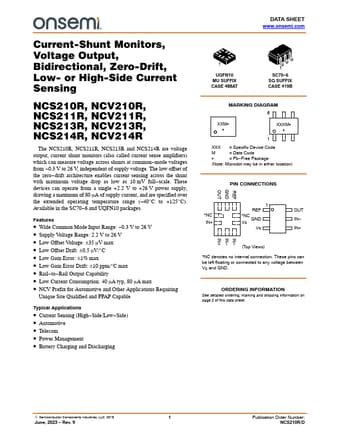

NCV214R Datasheet Preview Page 2 NCV214R Datasheet Preview Page 3
