NCV4274A - Voltage Regulator

Product Overview

ON Semiconductor

Datasheet Details

Part number	NCV4274A
Manufacturer	ON Semiconductor
File Size	341.80 KB
Description	Voltage Regulator
Datasheet	NCV4274A Datasheet
Note	This datasheet PDF includes multiple part numbers: NCV4274A, NCV4274. Please refer to the document for exact specifications by model.

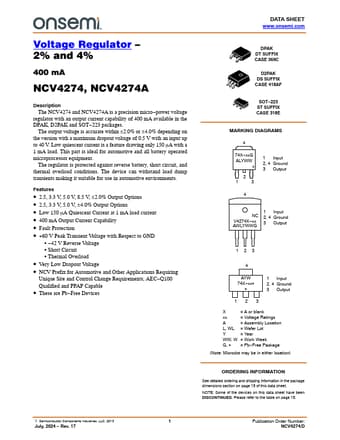

Additional preview pages of the NCV4274A datasheet.

Product details

Description

The NCV4274 and NCV4274A is a precision micro power voltage regulator with an output current capability of 400 mA available in the DPAK, D2PAK and SOT 223 packages.

Features

2.5, 3.3 V, 5.0 V, 8.5 V, ±2.0% Output Options.
2.5, 3.3 V, 5.0 V, ±4.0% Output Options.
Low 150 mA Quiescent Current at 1 mA load current.
400 mA Output Current Capability.
Fault Protection.
+60 V Peak Transient Voltage with Respect to GND S.
42 V Reverse Voltage S Short Circuit S Thermal Overload.
Very Low Dropout Voltage.
NCV Prefix for Automotive and Other.
