NCV4274C - 400mA Low Dropout Voltage Regulator

Product Overview

ON Semiconductor

📥 Download Datasheet

NCV4274C 400mA Low Dropout Voltage Regulator by ON Semiconductor - Datasheet Preview — Datasheet preview – NCV4274C

Datasheet Details

Part number	NCV4274C
Manufacturer	ON Semiconductor
File Size	351.00 KB
Description	400mA Low Dropout Voltage Regulator
Datasheet	NCV4274C Datasheet

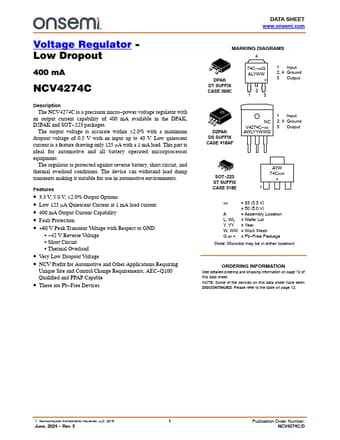

Additional preview pages of the NCV4274C datasheet.

Product details

Description

The NCV4274C is a precision micro power voltage regulator with an output current capability of 400 mA available in the DPAK, D2PAK and SOT 223 packages.

Features

3.3 V, 5.0 V, ±2.0% Output Options.
Low 125 mA Quiescent Current at 1 mA load current.
400 mA Output Current Capability.
Fault Protection.
+60 V Peak Transient Voltage with Respect to GND S.
42 V Reverse Voltage S Short Circuit S Thermal Overload.
Very Low Dropout Voltage.
NCV Prefix for Automotive and Other.
