NCV4275C - 450mA Low Drop Voltage Regulator

Product Overview

ON Semiconductor

Datasheet Details

Part number	NCV4275C
Manufacturer	ON Semiconductor
File Size	143.87 KB
Description	450mA Low Drop Voltage Regulator
Datasheet	NCV4275C Datasheet

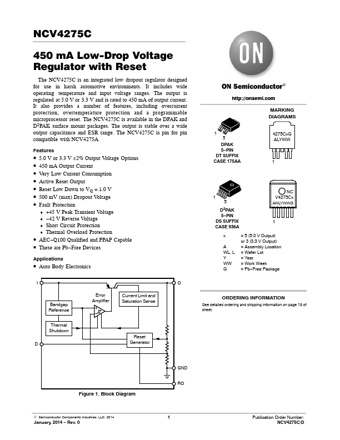

Additional preview pages of the NCV4275C datasheet.

Product details

Description

Pin No. 5 D2PAK 5 Symbol Description 1 I Input; Battery Supply Input Voltage.Bypass to ground with a ceramic capacitor.2 RO Reset Output; Open Collector Active Reset (accurate when I > 1.0 V).3, TAB GND Ground; Pin 3 internally connected to tab.4 D Reset Delay; timing capacitor to GND for Reset Delay function.5 Q Output; ±2.0%, 450 mA output.Bypass with 22 mF capacitor, ESR < 4.5 W (5.0 V Version), 3.5 W (3.3 V Version).MAXIMUM RATINGS Rating Symbol Min

Features

including overcurrent protection, overtemperature protection and a programmable microprocessor reset. The NCV4275C is available in the DPAK and D2PAK surface mount packages. The output is stable over a wide output capacitance and ESR range. The NCV4275C is pin for pin compatible with NCV4275A. Features.
5.0 V or 3.3 V ±2% Output Voltage Options.
450 mA Output Current.
Very Low Current Consumption.
Active Reset Output.
Reset Low Down to VQ = 1.0 V.
