NCV4275A - Low-Dropout Voltage Regulator

Product Overview

ON Semiconductor

Datasheet Details

Part number	NCV4275A
Manufacturer	ON Semiconductor
File Size	123.60 KB
Description	Low-Dropout Voltage Regulator
Datasheet	NCV4275A Datasheet

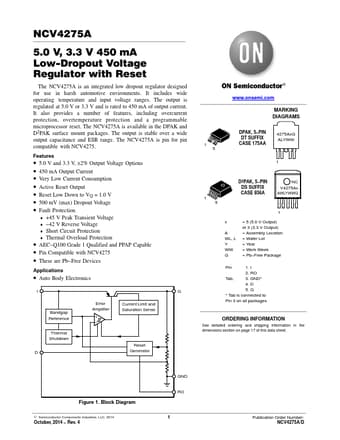

Additional preview pages of the NCV4275A datasheet.

Product details

Description

Pin # ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ1 ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ2 ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ3, Tab ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ4 ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ5 Symbol Description I Input; Battery Supply Input Voltage.Bypass to ground with a ceramic capacitor.RO Reset Output; Open Collector Active Reset (accurate when I > 1.0 V).GND Ground; Pin 3 internally connected to tab.D Reset Delay; timing capacitor to GND for Reset Delay

Features

including overcurrent protection, overtemperature protection and a programmable microprocessor reset. The NCV4275A is available in the DPAK and D2PAK surface mount packages. The output is stable over a wide output capacitance and ESR range. The NCV4275A is pin for pin compatible with NCV4275. Features.
5.0 V and 3.3 V, ±2% Output Voltage Options.
450 mA Output Current.
Very Low Current Consumption.
Active Reset Output.
Reset Low Down to VQ = 1.0 V.
