NCV68061 - Ideal Diode NMOS Controller

ON Semiconductor

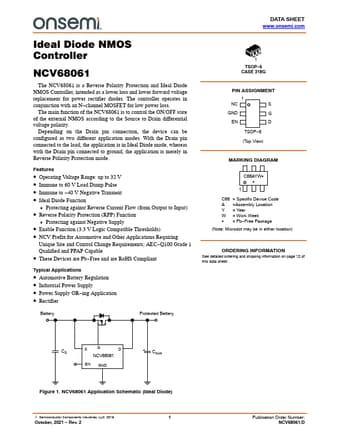

NCV68061 Datasheet Preview — Preview of NCV68061 PDF

Datasheet Details

Part number	NCV68061
Manufacturer	ON Semiconductor ↗
File Size	216.55 KB
Description	Ideal Diode NMOS Controller
Datasheet	NCV68061-ONSemiconductor.pdf

NCV68061 Product details

Description

Pin No. 6 Pin Name Description 1 NC Not Connected.Not internally bonded.This pin can be left floating or connected to GND on the PCB.2 GND Ground potential.3 EN Enable Input.High Level enables the chip.Connect to Source pin if enable function is not required.4 D Cathode of the diode and Inverting input of the internal comparator.Bypass directly to GND with a ceram- ic capacitor.Connect to the Drain of the external NMOS or to the GND (see the application sche

Features

Operating Voltage Range: up to 32 V.
Immune to 60 V Load Dump Pulse.
Immune to.
40 V Negative Transient.
Ideal Diode Function.
Protecting against Reverse Current Flow (from Output to Input).
Reverse Polarity Protection (RPP) Function.
Protecting against Negative Supply.
Enable Function (3.3 V Logic Compatible Thresholds).
NCV Prefix for Automotive and Other.
