NCV70501 Datasheet - ON Semiconductor

NCV70501 - Micro-Stepping Motor Driver

NCV70501 Micro-Stepping Motor Driver Introduction NCV70501 is a micro stepping stepper motor driver for bipolar stepper motors.

The chip is connected through I/O pins and an SPI interface with an external microcontroller.

The NCV70501 contains a current translation table and takes the next micro step depending on the clock signal on the “NXT” input pin and the status of the “DIR” (= direction) register or input pin.

The chip provides an error message if stall, an electri

NCV70501 Features

* Dual H

* Bridge for 2

* Phase Stepper Motors

* Programmable Peak

* Current Up to 300 mA

* On

* Chip Current Translator

* SPI Interface With

NCV70501-ONSemiconductor.pdf

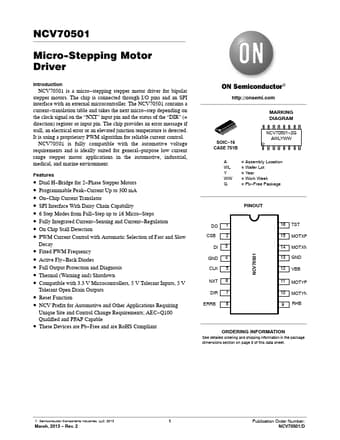

Preview of NCV70501 PDF
NCV70501 Datasheet Preview Page 2 NCV70501 Datasheet Preview Page 3

Datasheet Details

Part number:

NCV70501

Manufacturer:

ON Semiconductor ↗

File Size:

284.58 KB

Description:

Micro-stepping motor driver.
