NCV70516

Micro-stepping Motor Driver

ON Semiconductor

NCV70516 Features

* Dual H

* bridge for 2

* phase Stepper Motors

* Programmable Peak

* current up to 800 mA

* Low Temperature Boost Current up to 1100 mA

* On

* chip Current Translator

* SPI Interface

* 5 Step Modes from Full

* step up to 1

NCV70516 General Description

The NCV70516 is a micro

*stepping stepper motor driver for bipolar stepper motors. The chip is connected through I/O pins and an SPI interface with an external microcontroller. The NCV70516 contains a current

*translation table and takes the next micro

*step depending on the clo.

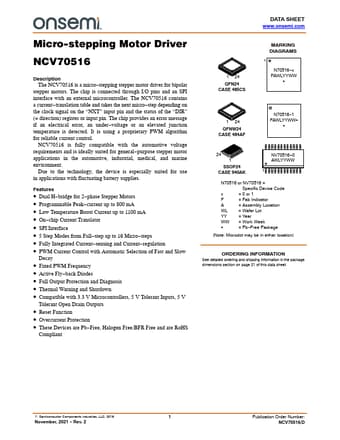

NCV70516 Datasheet (432.48 KB)

NCV70516 Datasheet Preview — Preview of NCV70516 PDF

Datasheet Details

Part number:

NCV70516

Manufacturer:

ON Semiconductor ↗

File Size:

432.48 KB

Description:

Micro-stepping motor driver.
