NCV70521 Datasheet - ON Semiconductor

NCV70521 Micro-Stepping Motor Driver

AMIS-30521, NCV70521 Micro-Stepping Motor Driver Introduction The AMIS 30521/NCV70521 is a micro stepping stepper motor driver for bipolar stepper motors. The chip is connected through I/O pins and a SPI interface with an external microcontroller. The AMIS 30521/NCV70521 contains a current translation table. It takes the next micro step depending on the clock signal on the “NXT” input pin and the status of the “DIR” (= direction) register or input pin. Th.

NCV70521_ONSemiconductor.pdf

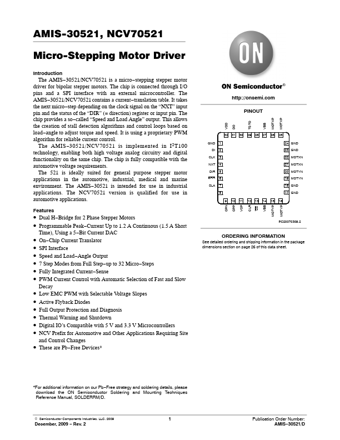

Preview of NCV70521 PDF
NCV70521 Datasheet Preview Page 2 NCV70521 Datasheet Preview Page 3

Datasheet Details

Part number:

NCV70521

Manufacturer:

ON Semiconductor ↗

File Size:

301.89 KB

Description:

Micro-stepping motor driver.
