NCV7800A, NCV7805 Datasheet - ON Semiconductor

NCV7800A, NCV7805, THREE-TERMINAL POSITIVE FIXED VOLTAGE REGULATORS

Voltage Regulators * Positive 1.0 A MC7800, MC7800A, MC7800AE, NCV7800 These voltage regulators are monolithic integrated circuits designed as.

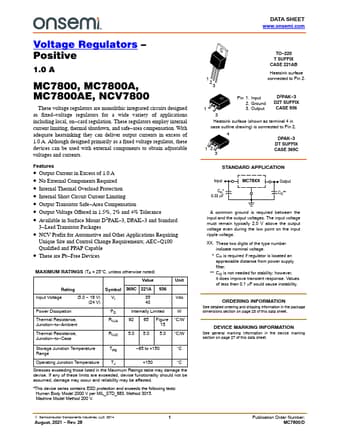

datasheet Preview Page 1 from Datasheet4u.com

NCV7805_ONSemiconductor.pdf

NCV7800A Datasheet Preview — This datasheet PDF includes multiple part numbers: NCV7800A, NCV7805. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NCV7800A, NCV7805

Manufacturer:

ON Semiconductor ↗

File Size:

469.82 KB

Description:

THREE-TERMINAL POSITIVE FIXED VOLTAGE REGULATORS

Note:

This datasheet PDF includes multiple part numbers: NCV7800A, NCV7805.
Please refer to the document for exact specifications by model.

Features

* Output Current in Excess of 1.0 A
* No External Components Required
* Internal Thermal Overload Protection
* Internal Short Circuit Current Limiting
* Output Transistor Safe
* Area Compensation
* Output Voltage Offered in 1.5%, 2% and 4% Tolera

Applications

* including local, on
* card regulation. These regulators employ internal current limiting, thermal shutdown, and safe
* area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices
