NCV7806B - 1.0A Positive Voltage Regulators

Product Overview

ON Semiconductor

📥 Download Datasheet

NCV7806B 1.0A Positive Voltage Regulators by ON Semiconductor - Datasheet Preview — Datasheet preview – NCV7806B

Datasheet Details

Part number	NCV7806B
Manufacturer	ON Semiconductor
File Size	469.82 KB
Description	1.0A Positive Voltage Regulators
Datasheet	NCV7806B Datasheet
Note	This datasheet PDF includes multiple part numbers: NCV7806B, NCV7805B. Please refer to the document for exact specifications by model.

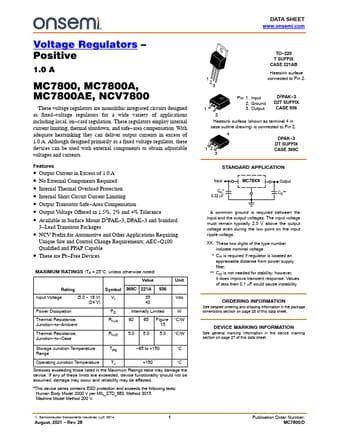

Additional preview pages of the NCV7806B datasheet.

Product details

Features

Output Current in Excess of 1.0 A.
No External Components Required.
Internal Thermal Overload Protection.
Internal Short Circuit Current Limiting.
Output Transistor Safe.
Area Compensation.
Output Voltage Offered in 1.5%, 2% and 4% Tolerance.
Available in Surface Mount D2PAK.
3, DPAK.
3 and Standard 3.
Lead Transistor Packages.
NCV Prefix for Automotive and Other.
