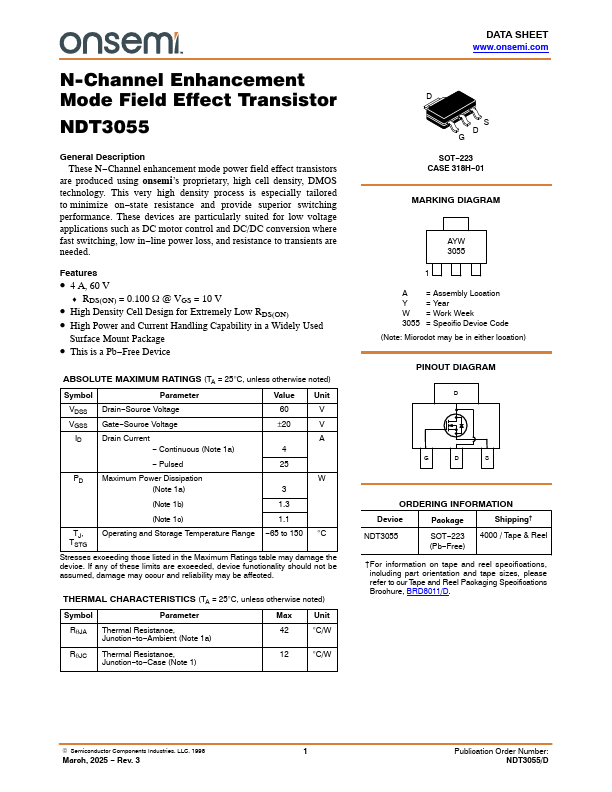

NDT3055 Datasheet, Transistor, ON Semiconductor

✔ NDT3055 Features

4 A, 60 V
RDS(ON) = 0.100 W @ VGS = 10 V
High Density Cell Design for Extremely Low RDS(ON)
High Power and Current Handling Capability in a Widely Used Surface Mo

✔ NDT3055 Application

such as DC motor control and DC/DC conversion where fast switching, low in
line power loss, and resistance t

PDF File Details

ON Semiconductor manufacturer logo

Part number:

NDT3055

Manufacturer:

ON Semiconductor ↗

File Size:

197.27kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode field effect transistor. These N*Channel enhancement mode power field effect transistors are produced using onsemi’s proprietary, high cell density, DMOS tech

📥 Download PDF (197.27kb)
