NSVBC114EPDXV6T1G - Dual Bias Resistor Transistors

NSBC114EPDXV6T1G, NSVBC114EPDXV6T1G Series Dual Bias Resistor Transistors NPN and PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor.

These digital transistors are designed to replace a single device and its external resistor bias network.

The BRT eliminates these individual components by i

NSVBC114EPDXV6T1G Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* Available in 8 mm, 7 inch Tape and Reel

* AEC

* Q101 Qualified and PPAP Capable

* NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Cha

NSVBC114EPDXV6T1G-ONSemiconductor.pdf

Preview of NSVBC114EPDXV6T1G PDF

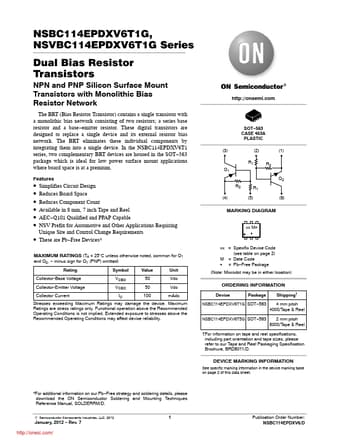

NSVBC114EPDXV6T1G Datasheet Preview Page 2 NSVBC114EPDXV6T1G Datasheet Preview Page 3
