NTD5802N - Power MOSFET

ON Semiconductor

📥 Download Datasheet

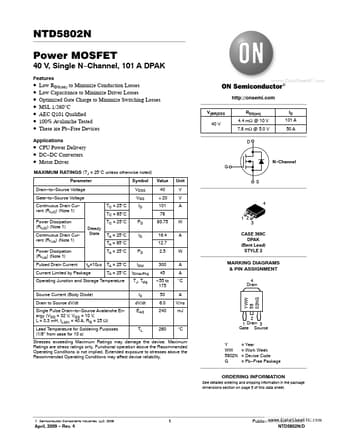

NTD5802N Datasheet Preview — Preview of NTD5802N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NTD5802N
Manufacturer	ON Semiconductor ↗
File Size	152.41 KB
Description	Power MOSFET
Datasheet	NTD5802N_ONSemiconductor.pdf

NTD5802N Product details

Features

40 V, Single N.
Channel, 101 A DPAK.
Low RDS(on) to Minimize Conduction Losses Low Capacitance to Minimize Driver Losses Optimized Gate Charge to Minimize Switching Losses MSL 1/260°C AEC Q101 Qualified 100% Avalanche Tested These are Pb.
Free Devices www. DataSheet4U. com http://onsemi. com V(BR)DSS 40 V RDS(on) 4.4 mW @ 10 V 7.8 mW @ 5.0 V D ID 101 A 50 A.
