NTE4151P - P-Channel MOSFET

NTE4151P Description

NTA4151P, NTE4151P MOSFET * Single, P-Channel, Small Signal, Gate Zener, SC-75, SC-89 -20 V, -760 mA .

NTE4151P Features

* Low RDS(on) for Higher Efficiency and Longer Battery Life
* Small Outline Package (1.6 x 1.6 mm)
* SC
* 75 Standard Gullwing Package
* ESD Protected Gate
* These Devices are Pb

NTE4151P Applications

* High Side Load Switch
* DC
* DC Conversion
* Small Drive Circuits
* Battery Operated Systems such as Cell Phones, PDAs, Digital Cameras, etc. MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Parameter Symbol Value Units Drain
* to
* Source V

📥 Download Datasheet

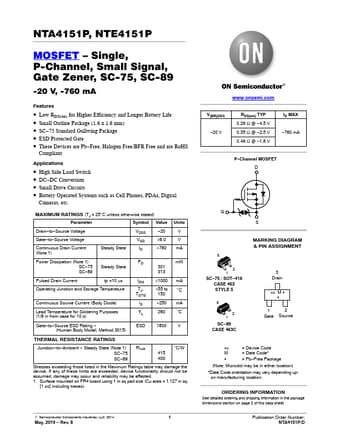

Preview of NTE4151P PDF
datasheet Preview Page 2 datasheet Preview Page 3
