NVBG025N065SC1 Datasheet - ON Semiconductor

NVBG025N065SC1, SiC MOSFET

Silicon Carbide (SiC) MOSFET - 19 mohm, 650 V, M2, D2PAK-7L NVBG025N065SC1 .

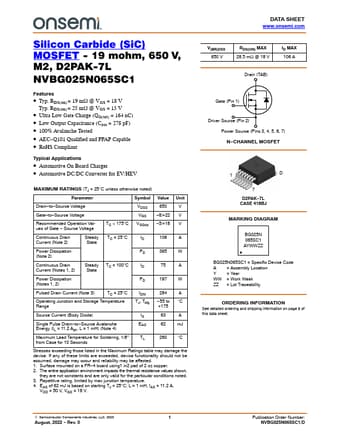

datasheet Preview Page 1 from Datasheet4u.com

NVBG025N065SC1-ONSemiconductor.pdf

NVBG025N065SC1 Datasheet Preview — Preview of NVBG025N065SC1 PDF

Datasheet Details

Part number:

NVBG025N065SC1

Manufacturer:

ON Semiconductor ↗

File Size:

217.16 KB

Description:

SiC MOSFET

Features

* Typ. RDS(on) = 19 mW @ VGS = 18 V Typ. RDS(on) = 25 mW @ VGS = 15 V
* Ultra Low Gate Charge (QG(tot) = 164 nC)
* Low Output Capacitance (Coss = 278 pF)
* 100% Avalanche Tested
* AEC
* Q101 Qualified and PPAP Capable
* RoHS Compliant Typical App

Applications

* Automotive On Board Charger
* Automotive DC/DC Converter for EV/HEV MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage Gate
* to
* Source Voltage Recommended Operation Values of Gate
* Sourc
