NXH600B100H4Q2F2SG, NXH600B100H4Q2F2PG Datasheet - ON Semiconductor

NXH600B100H4Q2F2SG, NXH600B100H4Q2F2PG, Si/SiC Hybrid Module

Si/SiC Hybrid Module * EliteSiC, 3 Channel Symmetric Boost 1000 V, 200 A IGBT, 1200 V, 60 A SiC Diode, Q2 Package NXH600B100H4Q2F2PG, NXH600B1.

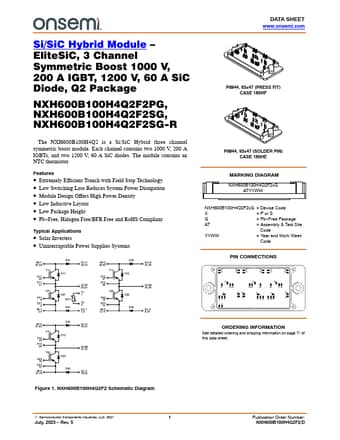

datasheet Preview Page 1 from Datasheet4u.com

NXH600B100H4Q2F2PG-ONSemiconductor.pdf

NXH600B100H4Q2F2SG Datasheet Preview — This datasheet PDF includes multiple part numbers: NXH600B100H4Q2F2SG, NXH600B100H4Q2F2PG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NXH600B100H4Q2F2SG, NXH600B100H4Q2F2PG

Manufacturer:

ON Semiconductor ↗

File Size:

1.73 MB

Description:

Si/SiC Hybrid Module

Note:

This datasheet PDF includes multiple part numbers: NXH600B100H4Q2F2SG, NXH600B100H4Q2F2PG.
Please refer to the document for exact specifications by model.

Features

* Extremely Efficient Trench with Field Stop Technology
* Low Switching Loss Reduces System Power Dissipation
* Module Design Offers High Power Density
* Low Inductive Layout
* Low Package Height
* Pb
* Free, Halogen Free/BFR Free and RoHS Compli

Applications

* Solar Inverters
* Uninterruptable Power Supplies Systems DATA SHEET www. onsemi. com PIM44, 93x47 (PRESS FIT) CASE 180HF PIM44, 93x47 (SOLDER PIN) CASE 180HE MARKING DIAGRAM NXH600B100H4Q2F2xG ATYYWW NXH600B100H4Q2F2xG = Device Code X = P or S G = Pb
* Free Package AT
