OH12AF-L Datasheet - OUZHUO

OH12AF-L Hall Effect Element

| HALL EFFECT SENOR IC | MAGNETIC SENSOR | OH12AF-L Hall Effect Element 1. Order Information Part number OH12AF-L, Also known as SH12AF-L Operation Temperature -40～120℃ 2. Maximum Ratings (Ta=25℃) Rank F (266 ~ 320mV) E (228 ~ 274mV) Package SOT143, 3000 pcs/reel Parameter Symbol Rating Unit Maximum Input Current Imax 20 (at 25℃) mA Maximum Power Dissipation Pmax 150 (at 25℃) mW Operating Temperature Range Top －40 ~ ＋120 ℃ Storage Temperature Range Tst －40 ~ ＋150 ℃ 3..

OH12AF-L Datasheet (326.07 KB)

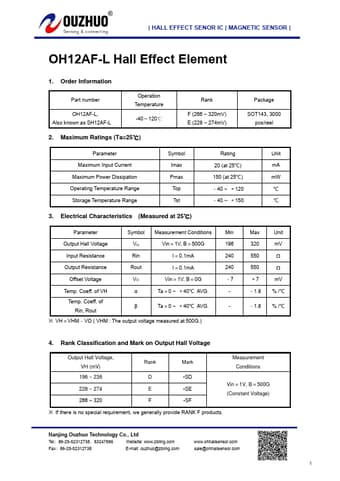

Preview of OH12AF-L PDF
OH12AF-L Datasheet Preview Page 2 OH12AF-L Datasheet Preview Page 3

Datasheet Details

Part number:

OH12AF-L

Manufacturer:

OUZHUO

File Size:

326.07 KB

Description:

Hall effect element.
