OH13 Hall Latch

OH13 Description

| HALL EFFECT SENOR IC | MAGNETIC SENSOR | OH513 / OH413 / OH13 Hall Latch IC 1.General .
OH413, OH513, OH13 Series Hall sensor IC latch on to a first pole (North or South) until a magnetic field of sufficient strength of the opposite polar.

OH13 Features

* 4V to 30V DC operation voltage
* Open-Collector sinking type
* 50mA maximum sinking output current.
* Reverse Polarity Protection

OH13 Applications

* The brushless DC motor internal reversing
* The motor speed and direction detection
* The motor of the electric bicycle, power-assisted device
* Speed sensor, counter
* The flow sensor, flow meter
* The automotive odometer, speed sensor 4. Functional Block Diagram Pin1.VCC

📥 Download Datasheet

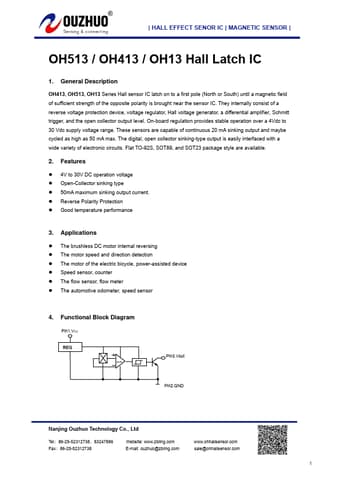

Preview of OH13 PDF
