OH137A0

Bipolar Hall Switch

OH137A0 Features

* 4.5V to 24V DC operation voltage

* Open-Collector pre-driver

* 25mA maximum sinking output current.

* Reverse Polarity Protection 3. Applications

* Position detection

* Flow measurement

* CPU FAN 4. Functional Block Diagram Pin1.VCC REG AMP Pin3.Vout Pin2.GND Nanjing

OH137A0 General Description

OH137A0, OH17 bipolar IC response to an N/S alternative magnetic field. Each device includes an onchip Hall voltage generator for magnetic sensing, an amplifier that amplifies the Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. 2. Featu.

OH137A0 Datasheet (264.39 KB)

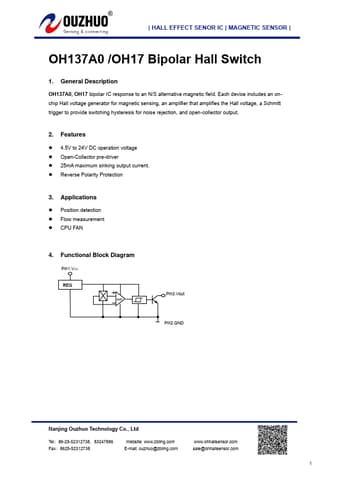

Preview of OH137A0 PDF

Datasheet Details

Part number:

OH137A0

Manufacturer:

OUZHUO

File Size:

264.39 KB

Description:

Bipolar hall switch.
