OH12B Datasheet - OUZHUO

OH12B Hall Effect Element

| HALL EFFECT SENOR IC | MAGNETIC SENSOR | OH12B Hall Effect Element 1. Order Information Part number OH12B, Old Part number: SH12B Operation Temperature -40～120℃ 2. Maximum Ratings (Ta=25℃) Rank F (266 ~ 320mV) E (228 ~ 274mV) Package SOT143, 3000 pcs/reel Parameter Symbol Rating Unit Maximum Input Current Imax 20 (at 25℃) mA Maximum Power Dissipation Pmax 150 (at 25℃) mW Operating Temperature Range Top －40 ~ ＋120 ℃ Storage Temperature Range Tst －40 ~ ＋150 ℃ 3. Elect.

OH12B Datasheet (299.91 KB)

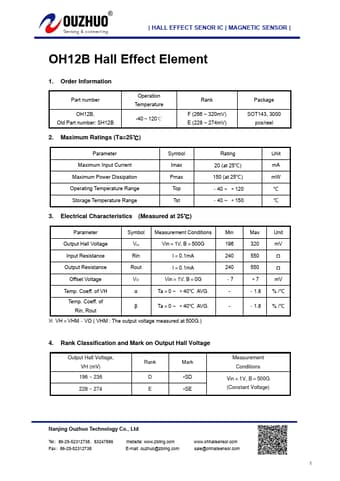

Preview of OH12B PDF
OH12B Datasheet Preview Page 2 OH12B Datasheet Preview Page 3

Datasheet Details

Part number:

OH12B

Manufacturer:

OUZHUO

File Size:

299.91 KB

Description:

Hall effect element.
