OCH140 Datasheet - Orient Chip

Bipolar Hall Effect Position Sensor

OCH140 Features

* Wide operating voltage range: 3.0V~24V

* Wide operating temperature range: -40°C ~+125°C

* Maximum output sink current 25mA

* Package: SIP3, TSOT23-3L, SOT89-3L and SOT23-3L

* Pin Configuration SIP-3L (Top View) TSOT23-3L (Top View) SOT23-3L (Top View) SOT89-3L (Top View)

OCH140 General Description

The OCH140 is an integrated Hall effect latched sensor designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifiers the Hall voltage, and a Schmitt trigger to provide switching hyster.

OCH140 Datasheet (176.32 KB)

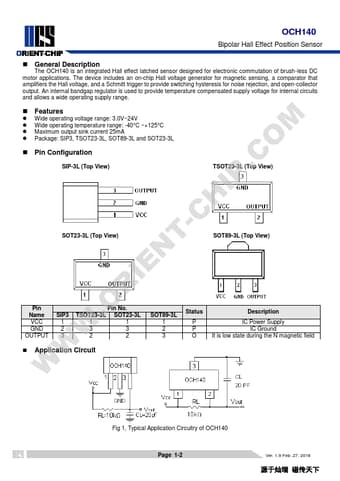

Preview of OCH140 PDF

Datasheet Details

Part number:

OCH140

Manufacturer:

Orient Chip

File Size:

176.32 KB

Description:

Bipolar hall effect position sensor.
