OCH141

Bipolar Hall Effect Position Sensor

OCH141 Datasheet (200.62 KB)

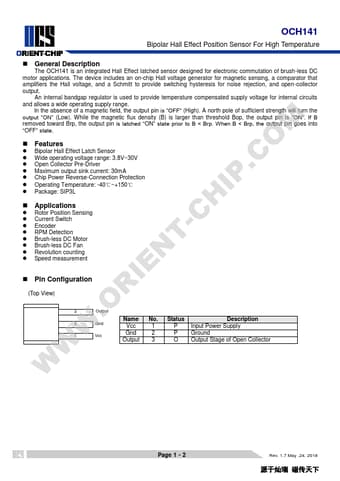

Preview of OCH141 PDF

Datasheet Details

Part number:

OCH141

Manufacturer:

Orient Chip

File Size:

200.62 KB

Description:

Bipolar hall effect position sensor.

OCH141 Features

* O

* Bipolar Hall Effect Latch Sensor

* Wide operating voltage range: 3.8V~30V .C

* Open Collector Pre-Driver

* Maximum output sink current: 30mA

* Chip Power Reverse-Connection Protection P

* Operating Temperature: -40℃~+150℃ I

* Package: SIP3L

* Applications H

OCH141 General Description

The OCH141 is an integrated Hall Effect latched sensor designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifiers the Hall voltage, and a Schmitt to provide switching hysteresis .
