OCH143

Bipolar Hall Effect Position Sensor

OCH143 Datasheet (165.04 KB)

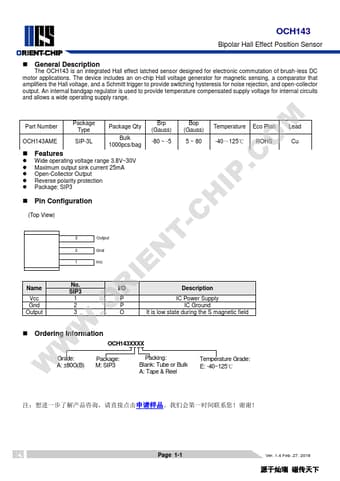

Preview of OCH143 PDF

Datasheet Details

Part number:

OCH143

Manufacturer:

Orient Chip

File Size:

165.04 KB

Description:

Bipolar hall effect position sensor.

OCH143 Features

* Wide operating voltage range 3.8V~30V

* Maximum output sink current 25mA

* Open-Collector Output

* Reverse polarity protection

* Package: SIP3

* Pin Configuration Brp (Gauss) -80 ~ -5 (Top View) Bop (Gauss) 5 ~ 80 Temperature Eco Plan -40~125℃ ROHS Lead Cu 3 Output 2

OCH143 General Description

The OCH143 is an integrated Hall effect latched sensor designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifiers the Hall voltage, and a Schmitt trigger to provide switching hyster.
