OSG60R180FF, N-Channel Power MOSFET

, OSG60R180FF, OSG60R180PF, OSG60R180KF, OSG60R180HF, OSG60R180IF Enhancement Mode N-Channel Power MOSFET * General .
OSG60R180xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics.

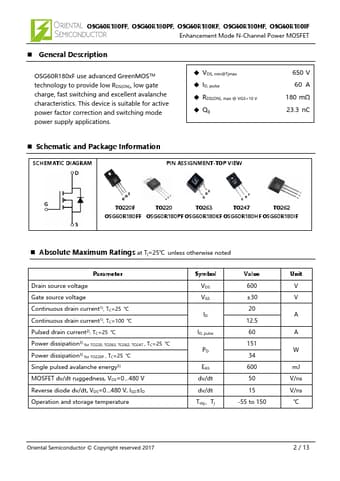

datasheet Preview Page 1 from Datasheet4u.com

OSG60R180FF-OrientalSemiconductor.pdf

OSG60R180FF Datasheet Preview — Preview of OSG60R180FF PDF

Datasheet Details

Part number:

OSG60R180FF

Manufacturer:

Oriental Semiconductor

File Size:

1.00 MB

Description:

N-Channel Power MOSFET

Applications

* VDS, min@Tjmax
* ID, pulse
* RDS(ON), max @ VGS=10 V
* Qg 650 V 60 A 180 mΩ 23.3 nC
* Schematic and Package Information SCHEMATIC DIAGRAM PIN ASSIGNMENT-TOP VIEW TO220F TO220 TO263 TO247 TO262 OSG60R180FF OSG60R180PF OSG60R180KF OSG60R180HF OSG60R180IF
* Absolu
