OSG60R180HF, OSG60R180FF N-Channel Power MOSFET

Description

, OSG60R180FF, OSG60R180PF, OSG60R180KF, OSG60R180HF, OSG60R180IF Enhancement Mode N-Channel Power MOSFET * General .
OSG60R180xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics.

📥 Download Datasheet

OSG60R180HF Datasheet Preview — This datasheet PDF includes multiple part numbers: OSG60R180HF, OSG60R180FF. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: OSG60R180HF, OSG60R180FF
Manufacturer: Oriental Semiconductor
File Size: 1.00 MB
Datasheet: OSG60R180FF-OrientalSemiconductor.pdf
Description: N-Channel Power MOSFET
Note: This datasheet PDF includes multiple part numbers: OSG60R180HF, OSG60R180FF.
Please refer to the document for exact specifications by model.

Applications

* VDS, min@Tjmax
* ID, pulse
* RDS(ON), max @ VGS=10 V
* Qg 650 V 60 A 180 mΩ 23.3 nC

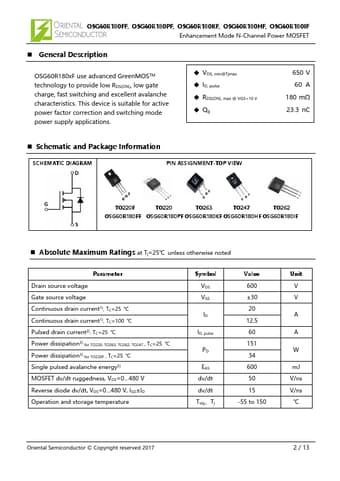

* Schematic and Package Information SCHEMATIC DIAGRAM PIN ASSIGNMENT-TOP VIEW TO220F TO220 TO263 TO247 TO262 OSG60R180FF OSG60R180PF OSG60R180KF OSG60R180HF OSG60R180IF
* Absolu
