OSG60R180PF, OSG60R180FF - N-Channel Power MOSFET

OSG60R180PF Datasheet Preview — This datasheet PDF includes multiple part numbers: OSG60R180PF, OSG60R180FF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	OSG60R180PF, OSG60R180FF
Manufacturer	Oriental Semiconductor
File Size	1.00 MB
Description	N-Channel Power MOSFET
Datasheet	OSG60R180FF-OrientalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: OSG60R180PF, OSG60R180FF. Please refer to the document for exact specifications by model.

OSG60R180PF Product details

Description

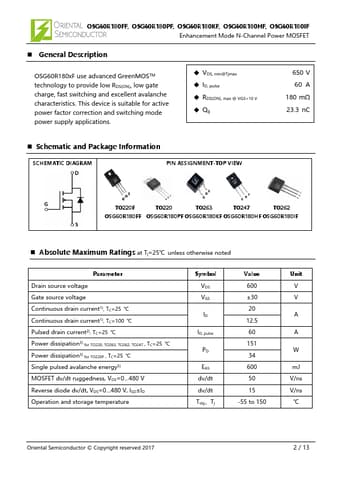

OSG60R180xF use advanced GreenMOSTM technology to provide low RDS(ON), low gate charge, fast switching and excellent avalanche characteristics. VDS, min@Tjmax ID, pulse RDS(ON), max @ VGS=10 V Qg 650 V 60 A 180 mΩ 23.3 nC Schematic and Package Information SCHEMATIC DIAGRAM PIN ASSIGNMENT-TOP VIEW TO220F TO220 TO263 TO247 TO262 OSG60R180FF OSG60R180PF
