PT16976

Automotive LED Current Controller

PT16976 Features

* include open load and short circuit protection, the controller is turned off when an open load or short circuit is detected. The device is available in a SOP8 package. APPLICATION

* Rear Combination Lamps (RCL)

* Daytime Running Lights (DRL)

* Turn Signal

* Center High Mounted Stop L

PT16976 General Description

PT16976 is a linear LED controller for automotive exterior lighting. The controller drives an external NPN transistor to regulate a current for LED lamps. The typical application of the device is a rear combination lamps for automotive. A single driver gives the user flexibility to add single channe.

PT16976 Datasheet (1.51 MB)

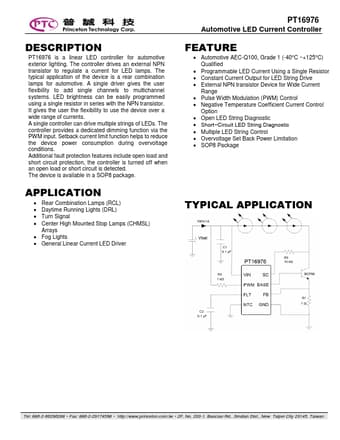

Preview of PT16976 PDF

Datasheet Details

Part number:

PT16976

Manufacturer:

PTC

File Size:

1.51 MB

Description:

Automotive led current controller.
