PT4306 - Compact 433.92 MHz OOK/ASK Receiver

PT4306 Description

PT4306 Compact 433.92 MHz OOK/ASK Receiver .
FEATURES The PT4306 is a compact, fully integrated OOK/ASK receiver with ±4 KV ESD (HBM) and ±1 KV ESD (CDM) protections for 433.

PT4306 Features

* The PT4306 is a compact, fully integrated OOK/ASK receiver with ±4 KV ESD (HBM) and ±1 KV ESD (CDM) protections for 433.92 MHz frequency band, and just requires few external components. The PT4306 consists of a low-noise amplifier (LNA), image-rejection mixer (IRM), built-in channel-select filter (

PT4306 Applications

* The PT4306 is available in an 8-pin SOP package and is specified over the temperature range from
* 40 to +85 °C.
* Normal operating of 4.6 mA at 433.92 MHz
* Requires few external components
* Achieves sensitivity of
* 112 dBm (peak ASK signal level)
* Supply voltage

📥 Download Datasheet

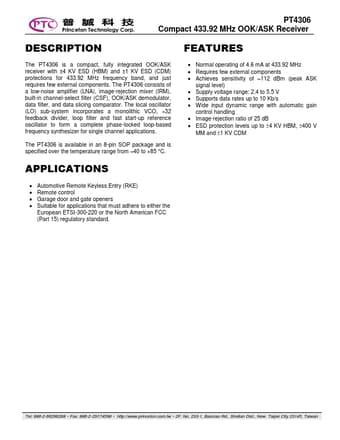

Preview of PT4306 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT4306
Manufacturer
PTC
File Size
342.21 KB
Datasheet
PT4306-PTC.pdf
Description
Compact 433.92 MHz OOK/ASK Receiver
