PT4317 Datasheet - PTC

PT4317 Low Power 315/433 MHz OOK/ASK Superheterodyne Receiver

The PT4317 is a low power single chip OOK/ASK superheterodyne receiver for the 315MHz and 434MHz frequency bands that offers a high level of integration and requires few external components. The PT4317 consists of a low-noise amplifier (LNA), down-conversion mixer, SAW-based local oscillator, on-chi.

PT4317 Features

* Low current consumption (4.7mA at VDD=5.0V)

* 2.4V to 5.5V supply voltage operation range

* Optimized for 315MHz or 434MHz ISM Band

* Saw-based oscillator with low frequency drift

* On-chip IF filter with better adjacent channel rejection capability

PT4317-PTC.pdf

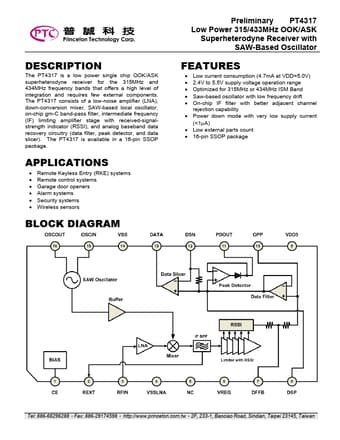

Preview of PT4317 PDF
PT4317 Datasheet Preview Page 2 PT4317 Datasheet Preview Page 3

Datasheet Details

Part number:

PT4317

Manufacturer:

PTC

File Size:

420.43 KB

Description:

Low power 315/433 mhz ook/ask superheterodyne receiver.
