PT4305

315 MHz / 433.92 MHz PLL Tuned Low Power FSK Receiver

PT4305 Features

* Supply voltage range: 2.4 V to 5.5 V

* Low current consumption: 5.2 mA (typical) at 433.92 MHz

* Supported data rate range: 1 Kb/s to 10 Kb/s

* Few external components

* Image-reject mixer

* On-chip auto-tuned channel-select band-pass filter

* Received signal strength i

PT4305 General Description

The PT4305 is a PLL-tuned FSK receiver for short-range wireless data applications in the 315 MHz and 434 MHz frequency bands. The PT4305 offers a high level of integration and only requires few external components. The PT4305’s receive section includes a low-noise amplifier, image-reject mixer, IF b.

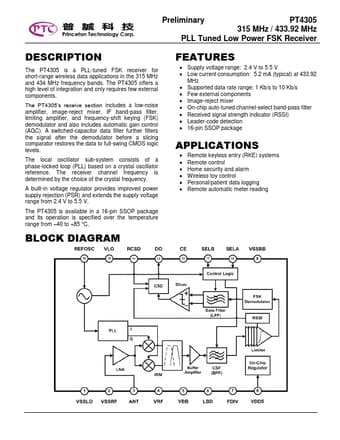

PT4305 Datasheet (675.28 KB)

Preview of PT4305 PDF

Datasheet Details

Part number:

PT4305

Manufacturer:

PTC

File Size:

675.28 KB

Description:

315 mhz / 433.92 mhz pll tuned low power fsk receiver.
