PT4308 - Compact 433.92 MHz OOK/ASK Receiver

Product Overview

PTC

PT4308 Compact 433.92 MHz OOK/ASK Receiver by PTC - Datasheet Preview — Datasheet preview – PT4308

Datasheet Details

Part number	PT4308
Manufacturer	PTC
File Size	330.95 KB
Description	Compact 433.92 MHz OOK/ASK Receiver
Datasheet	PT4308 Datasheet

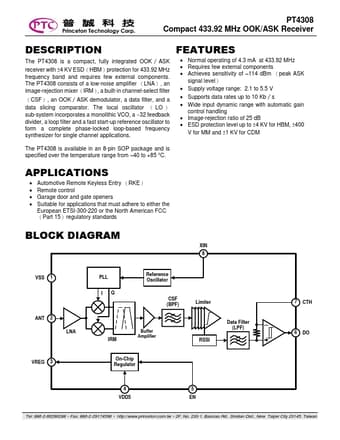

Additional preview pages of the PT4308 datasheet.

Product details

Description

The PT4308 is a compact, fully integrated OOK ／ ASK receiver with ±4 KV ESD（HBM）protection for 433.92 MHz frequency band and requires few external components.

Features

Normal operating of 4.3 mA at 433.92 MHz.
Requires few external components.
Achieves sensitivity of.
114 dBm （peak ASK signal level）.
Supply voltage range: 2.1 to 5.5 V.
Supports data rates up to 10 Kb／s.
Wide input dynamic range with automatic gain control handling.
Image-rejection ratio of 25 dB.
ESD protection level up to ±4 KV for HBM, ±400 V for MM and ±1 KV for CDM The PT4308 is available in an 8-pin SOP package and is specified over the te.
