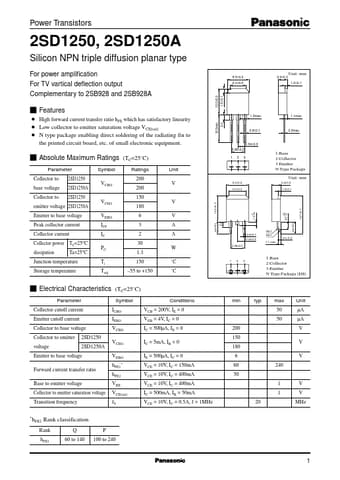

* q q q 1.5±0.1 High forward current transfer ratio hFE which has satisfactory linearity Low collector to emitter saturation voltage VCE(sat) N type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment. (TC=25˚C) Ratings 200 200 150
2SD1250
Panasonic Semiconductor
48.91 KB
Silicon npn epitaxial planar type power transistor.
Power Transistors
2SD1250, 2SD1250A
Silicon NPN triple diffusion planar type
For power amplification For TV vartical deflection output Complementary .
