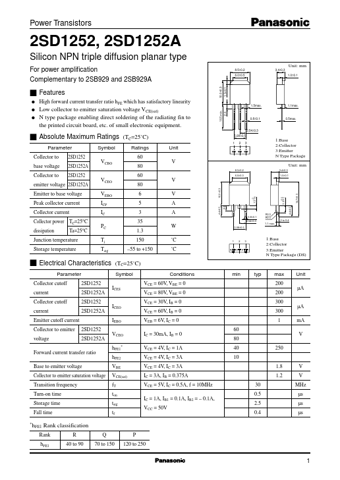

* q q q High forward current transfer ratio hFE which has satisfactory linearity Low collector to emitter saturation voltage VCE(sat) N type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment. (TC=25˚C) Ratings 60 80 60 80 6 5 3 35
2SD1252
Panasonic Semiconductor
49.30 KB
Silicon npn triple diffusion transistor.
Power Transistors
2SD1252, 2SD1252A
Silicon NPN triple diffusion planar type
For power amplification Complementary to 2SB929 and 2SB929A
