2SD1250A

Silicon NPN triple diffusion planar type Power Transistor

2SD1250A Features

* High forward current transfer ratio hFE which has satisfactory linearity

* Low collector-emitter saturation voltage VCE(sat)

* N type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment.

* Absolute Max

2SD1250A Datasheet (74.92 KB)

Preview of 2SD1250A PDF

Datasheet Details

Part number:

2SD1250A

Manufacturer:

Panasonic Semiconductor

File Size:

74.92 KB

Description:

Silicon npn triple diffusion planar type power transistor.

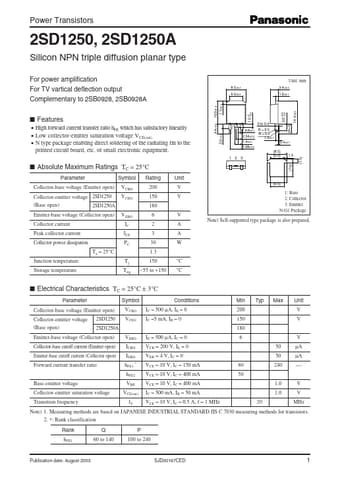

Power Transistors 2SD1250, 2SD1250A Silicon NPN triple diffusion planar type For power amplification For TV vartical deflection output Complementary .
