* q q q High foward current transfer ratio hFE High-speed switching I type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment. (TC=25˚C) Ratings 60 80 60 80 7 12 8 15 1.3 150
* 55 to +150 Unit V 7.2±0.3 0.8±0.2 1.1±0.1 0.
2SD1750
Panasonic Semiconductor
64.98 KB

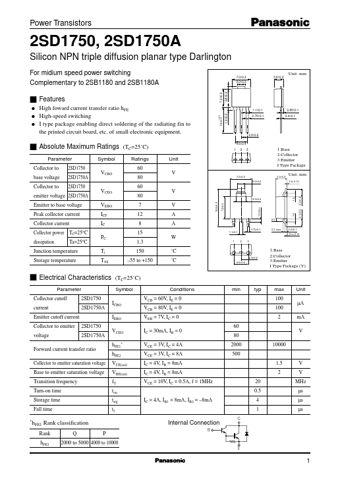

Silicon npn triple diffusion planar type transistor.
Power Transistors
2SD1750, 2SD1750A
Silicon NPN triple diffusion planar type Darlington
For midium speed power switching Complementary to 2SB1180 and.
