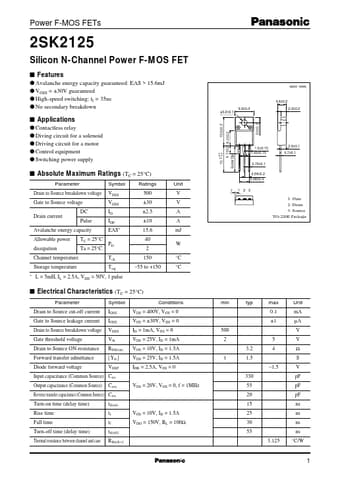

2SK2125 Datasheet, Fet, Panasonic Semiconductor

2SK2125 Features

• Fet q Avalanche energy capacity guaranteed: EAS > 15.6mJ q VGSS = ±30V guaranteed q High-speed switching: tf = 35ns q No secondary breakdown unit: mm 4.6±0.2 φ3.2±0.1 9.9±0.3 2.9±0.2 s App

PDF File Details

Part number:

2SK2125

Manufacturer:

Panasonic Semiconductor

File Size:

46.82kb

Download:

📄 Datasheet

Description:

Silicon n-channel power f-mos fet.

2SK2125 Application

• Applications 4.1±0.2 8.0±0.2 Solder Dip 13.7
    –0.2 q Contactless relay q Diving circuit for a solenoid q Driving circuit for a motor
