LN1251CAL Datasheet - Panasonic Semiconductor

LN1251CAL Ultra Hight Bright Surface Mounting Chip

Ultra Hight Bright Surface Mounting Chip J-GaAIAs Type LED Unit: mm Conventional Part No. Global Prat No. Lighting Color C0.5 1.0 ± 0.2 1 LN1251CAL (TR) LNJ251C4ARA Ultra Bright Red 3.0 ± 0.2 3.2 ± 0.2 0.7 ± 0.3 1 s Absolute Maximum Ratings (Ta = 25°C) Lighting Color PD(mW) IF(mA) Ultra Bright Red 45 15 IFP IFP(mA)∗ 60 VR(V) Topr(°C) Tstg(°C) 3 25 ∼ +80 30 ∼ +85 2 1.6 ± 0.2 2.0 ± 0.2 0.5 ± 0.2 1.1 ± 0.

LN1251CAL Datasheet (28.66 KB)

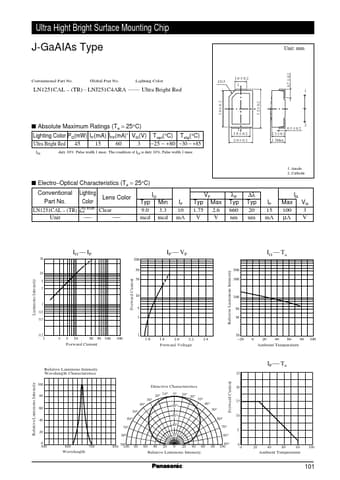

Preview of LN1251CAL PDF

Datasheet Details

Part number:

LN1251CAL

Manufacturer:

Panasonic Semiconductor

File Size:

28.66 KB

Description:

Ultra hight bright surface mounting chip.
