LN1231

300mA Low Dropout CMOS Voltage Regulator

LN1231 Features

* Output voltage: 1.2V to 6.0V(selectable in 100mV steps)

* High-accuracy output voltage: ± 2.0%

* Low dropout voltage: 160mV @100mA (3.0 type)

* Low current consumption: 4.0 µA (typ.)

* Maximum Outp

LN1231 General Description

The LN1231 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The LN1231 consists of a current limiter circuit, a driver transistor, a pr.

LN1231 Datasheet (336.64 KB)

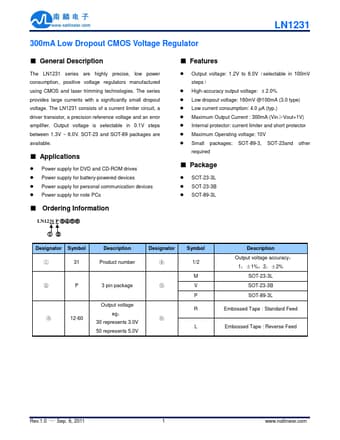

Preview of LN1231 PDF

Datasheet Details

Part number:

LN1231

Manufacturer:

natlinear

File Size:

336.64 KB

Description:

300ma low dropout cmos voltage regulator.
