LN1261CALTR Hight Bright Surface Mounting Chip LED

Light Emitting Diodes This product complies with the RoHS Directive (EU 2002/95/EC). LN1261CALTR Hight Bright Surface Mounting Chip LED GW Type Absolute Maximum Ratings Ta = 25°C Parameter Symbol Power dissipation PD Forward current IF Pulse forward current IFP Reverse voltage VR Operating ambient temperature Topr Storage temperature Tstg Note) : The condition of IFP is duty 10%, Pulse width 1 msec. Rating 50 20 60 3 25 to +80 30 to +85 Unit.

LN1261CALTR-Panasonic.pdf

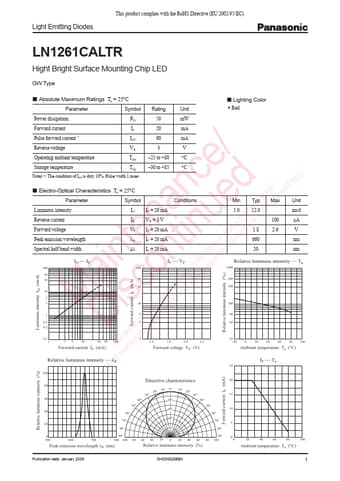

LN1261CALTR Datasheet Preview — Preview of LN1261CALTR PDF

LN1261CALTR Datasheet Preview Page 2

LN1261CALTR Datasheet Preview Page 3

Datasheet Details

Part number:

LN1261CALTR

Manufacturer:

Panasonic

File Size:

295.62 KB

Description:

Hight bright surface mounting chip led.
