C3940, C3940A - Silicon NPN Transistor

C3940 Description

Transistors 2SC3940, 2SC3940A Silicon NPN epitaxial planar type For low-frequency output amplification and driver amplification Complementary to 2SA15.

C3940 Features

* 0.7±0.1 0.7±0.2 13.5±0.5
* Low collector-emitter saturation voltage VCE(sat)
* Allowing supply with the radial taping
* Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit / Collector-base voltage 2SC3940 VCBO 30 V 0.45+
* 00..12 0.45+
* 00..1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: C3940, C3940A. Please refer to the document for exact specifications by model.

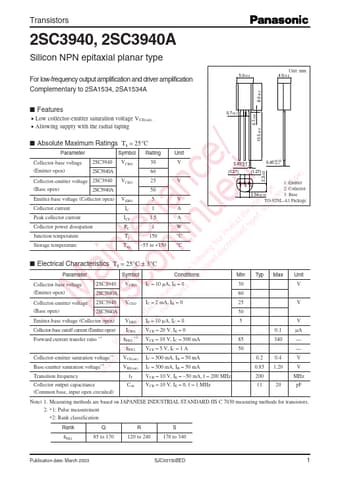

datasheet Preview Page 2 datasheet Preview Page 3
