ERAW0603 - Metal Film Thermosensitive Chip Resistors

Product Overview

Panasonic

Part number	ERAW0603
Manufacturer	Panasonic
File Size	109.87 KB
Description	Metal Film Thermosensitive Chip Resistors
Datasheet	ERAW0603 Datasheet
Note	This datasheet PDF includes multiple part numbers: ERAW0603, ERAW0402. Please refer to the document for exact specifications by model.

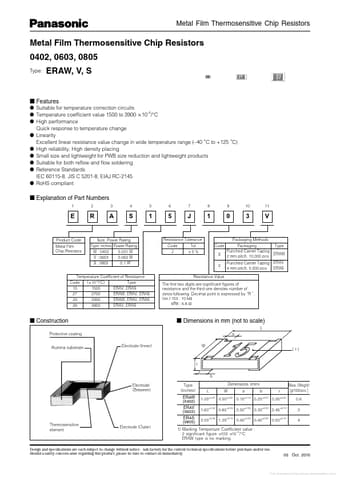

Additional preview pages of the ERAW0603 datasheet.

xplanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 E R A S 1 5 J 1 0 3 V Product Code Metal Film Chip Resistors Size, Power Rating Type: inches Power Rating W : 0402 0.031 W V : 0603 0.063 W S : 0805 0.1 W Resistance Tolerance Code J Tol. ±5% Code X V Resistance Value Packaging Methods Packaging Type Punched Carrier Taping ERAW 2 mm pitch, 10,000 pcs. Punched Carrier Taping ERAV 4 mm pitch, 5,000 pcs. ERAS Temperature Coefficient of Resistance Code Type (҂10.
6/°C) 15 ERAV.
