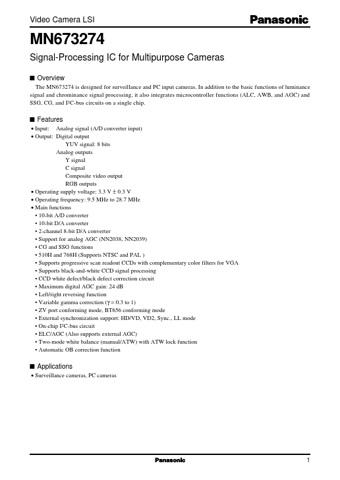

MN673274 - Signal-Processing LSI for Multimedia Camera
Pin No.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 Pin Name N.C.
V4 V3 VSS5 VDD5 V2 N.C.
V1 N.C.
SUB N.C.
CH2 N.C.
CH1 OSCCNT CXIN CXOUT OSCVDD OSCVSS OSCSEL WHD FVD FWHD CPOB PBLK HCLR LLDET I/O O O VSS VDD O O O O O O I O VDD VSS I O O O O O O I V1 charge pu
MN673274 Features
* Input: Analog signal (A/D converter input)
* Output: Digital output YUV signal: 8 bits Analog outputs Y signal C signal Composite video output RGB outputs
* Operating supply voltage: 3.3 V ± 0.3 V
* Operating frequency: 9.5 MHz to 28.7 MHz
* Main functions
