MN6761S Datasheet - Panasonic

External Synchronization Control LSI for Color Video Cameras

MN6761S Features

* Synchronization of both the video camera and the VCR External synchronization inputs: Composite synchronizing signal and burst subcarrier External synchronization techniques

* Horizontal synchronization: phase-locked loop

* Vertical synchronization: reset technique

* Subcarri

MN6761S General Description

Pin No. 23 22 8 7 9 6 3 11 24 1 2 17 Symbol VDD1 VSS1 VDD2 VSS2 GLSYNC CLBSC WHD fHP SC1 SCPSW1 SCPSW2 LSW Pin Name Power supply Power supply Power supply Power supply External synchronizing signal input External burst subcarrier input Horizontal synchronization input Monostable multivibrator input.

MN6761S Datasheet (71.29 KB)

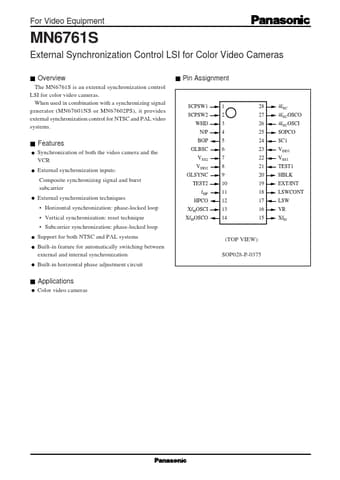

MN6761S Datasheet Preview — Preview of MN6761S PDF

Datasheet Details

Part number:

MN6761S

Manufacturer:

Panasonic

File Size:

71.29 KB

Description:

External synchronization control lsi for color video cameras.
For Video Equipment MN6761S External Synchronization Control LSI for Color Video Cameras Overview The MN6761S is an external synchronization control .
