MN676011NPS Datasheet - Panasonic

NTSC Color Camera Synchronizing Signal Generator LSI

MN676011NPS Features

* a built-in 4fSC (14.31818 MHz) crystal oscillator circuit and divides that frequency to generate the horizontal synchronizing signal fH (15.7 kHz), the vertical synchronizing signal f V (60 Hz), and the composite synchronizing signal. It also divides the 4fSC clock signal frequency by four to genera

MN676011NPS General Description

Pin No. 1 2 28 Symbol VDD1 VSS1 VDD2 Pin Name Power supply Power supply Power supply Function Description "H" level power supply (Connect this pin to +5.0 ±0.5 V.) Power supply for color subcarrier frequency signal circuits "L" level power supply (Connect this pin to 0 V.) Power supply for color su.

MN676011NPS Datasheet (51.18 KB)

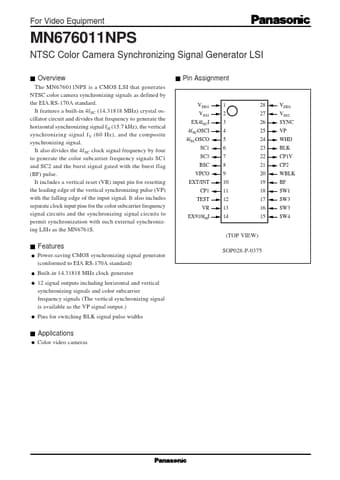

MN676011NPS Datasheet Preview — Preview of MN676011NPS PDF

Datasheet Details

Part number:

MN676011NPS

Manufacturer:

Panasonic

File Size:

51.18 KB

Description:

Ntsc color camera synchronizing signal generator lsi.
For Video Equipment MN676011NPS NTSC Color Camera Synchronizing Signal Generator LSI Overview The MN676011NPS is a CMOS LSI that generates NTSC color.
