MN67621F - Color Video Camera Synchronizing Signal Generator LSI

MN67621F Description

For Video Equipment MN67621F Color Video Camera Synchronizing Signal Generator LSI Overview The MN67621F generates color video camera synchronizing s.
Pin No.

MN67621F Features

* Supports CCDs with 420, 510, 590, and 670 H pixels Supports NTSC, PAL, and SECAM video systems PAL system 25Hz offset Includes built-in oscillator circuit using external crystal Generates 14 signals, including the horizontal and vertical synchronizing signals and the color subcarrier frequency signa

MN67621F Applications

* Color video cameras OSCI 1 2 3 4 5 6 7 8 9 10 11 TEST1 TEST2 TEST3 VSS1 CLK VDD1 EO N. C. ED N. C. N. C. 34 35 36 37 38 39 40 41 42 43 44 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 N. C. N. C. N. C. CCDS2 CCDS1 CSYNC CBLK CP2 TVMD2 SCBLK FMTP TVMD1 LSW BFIDP N. C. WHD VSS2 SC2

📥 Download Datasheet

Preview of MN67621F PDF

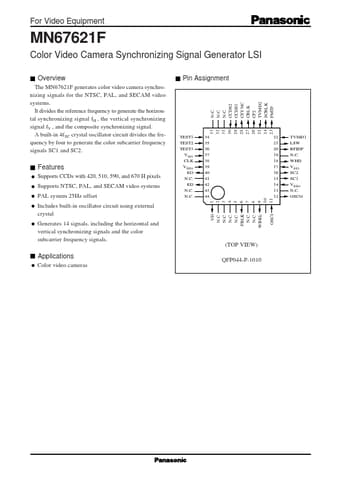

datasheet Preview Page 2 datasheet Preview Page 3
