MN6732741 Datasheet - Panasonic

Signal-processing IC for surveillance cameras and cameras for PC input

MN6732741 Features

* Input:

* Outputs: Analog signal (A/D converter input) Digital output 8-bit YUV signal Analog outputs Luminance signal Chrominance signal Composite video signal output RGB output

* Operating supply voltage: 3.3 V ± 0.3 V

* Operating clock frequency: 9.5 MHz to 28.7 M

MN6732741 General Description

(by circuit block) 1. ADC Converts the post-CDS CCD signal to a 10-bit digital signal. 2. PATGEN Generates test pattern signals. This circuit generates horizontal and vertical patterns with a color bar (3 colors) format. Since it simulates the output of the CCD 4-color complementary color filters, .

MN6732741 Datasheet (223.19 KB)

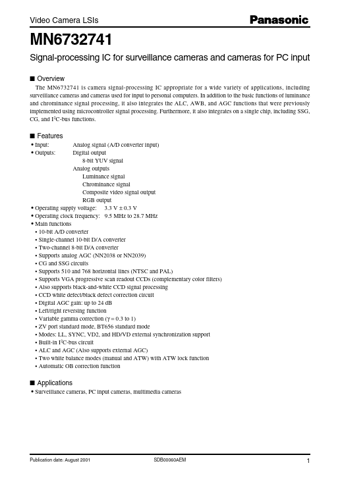

MN6732741 Datasheet Preview — Preview of MN6732741 PDF

Datasheet Details

Part number:

MN6732741

Manufacturer:

Panasonic

File Size:

223.19 KB

Description:

Signal-processing ic for surveillance cameras and cameras for pc input.
Video Camera LSIs MN6732741 Signal-processing IC for surveillance cameras and cameras for PC input I Overview The MN6732741 is camera signal-processi.
