PE4261 - SP4T UltraCMOS 2.6 V Switch

Peregrine Semiconductor

📥 Download Datasheet

PE4261 Datasheet Preview — Preview of PE4261 PDF

datasheet Preview Page 2

Datasheet Details

Part number: PE4261
Manufacturer: Peregrine Semiconductor
File Size: 148.83 KB
Datasheet: PE4261_PeregrineSemiconductor.pdf
Description: SP4T UltraCMOS 2.6 V Switch

PE4261 Product details

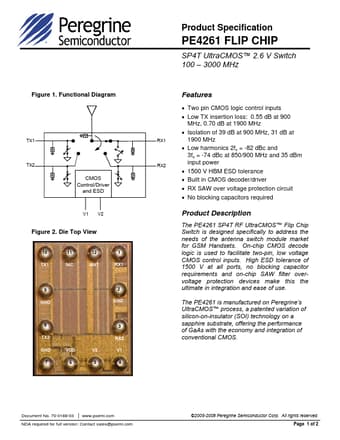

Description

The PE4261 SP4T RF UltraCMOS™ Flip Chip Switch is designed specifically to address the needs of the antenna switch module market for GSM Handsets..

Features

Two pin CMOS logic control inputs.
Low TX insertion loss: 0.55 dB at 900 MHz, 0.70 dB at 1900 MHz.
Isolation of 39 dB at 900 MHz, 31 dB at RX1 1900 MHz.
Low harmonics 2fo = -82 dBc and 3fo = -74 dBc at 850/900 MHz and 35 dBm RX2 input power.
1500 V HBM ESD tolerance.
Built in CMOS decoder/driver.
RX SAW over voltage protection circuit.
No blocking capacitors required Product.
