PE42660 Datasheet, Ultracmos, Peregrine Semiconductor

PE42660 Features

  • Ultracmos
  • Three pin CMOS logic control with integral decoder/driver
  • Exceptional harmonics performance: 2fo = -88 dBc and 3fo = -85 dBc
  • Low TX insertion loss: 0.55 dB

PDF File Details

Part number:

PE42660

Manufacturer:

Peregrine Semiconductor

File Size:

320.61kb

Download:

📄 Datasheet

Description:

Sp6t ultracmos. The PE42660 is a HaRP™-enhanced SP6T RF Switch developed on the UltraCMOS™ process technology. It addresses the specific design needs

Datasheet Preview: PE42660 📥 Download PDF (320.61kb)

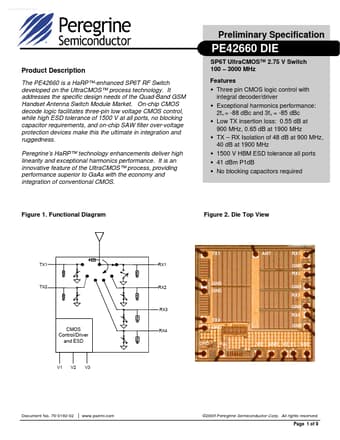

Page 2 of PE42660 Page 3 of PE42660
